Whether you’re reaching the recommended interval, enhancing your vehicle’s performance, or addressing a misfire problem, changing spark plugs is crucial for igniting the fuel-air mixture within your Hyundai i30N’s combustion chamber. To effortlessly replace them in your Hyundai i30N, just follow these straightforward six steps outlined below.

Tools needed:

• Ratchet with an extension bar
• Standard 10mm socket (for bolts)
• 10mm spark plug socket

Note: If you car has a tune, HKS iridium spark plugs come highly recommended within the i30N community.

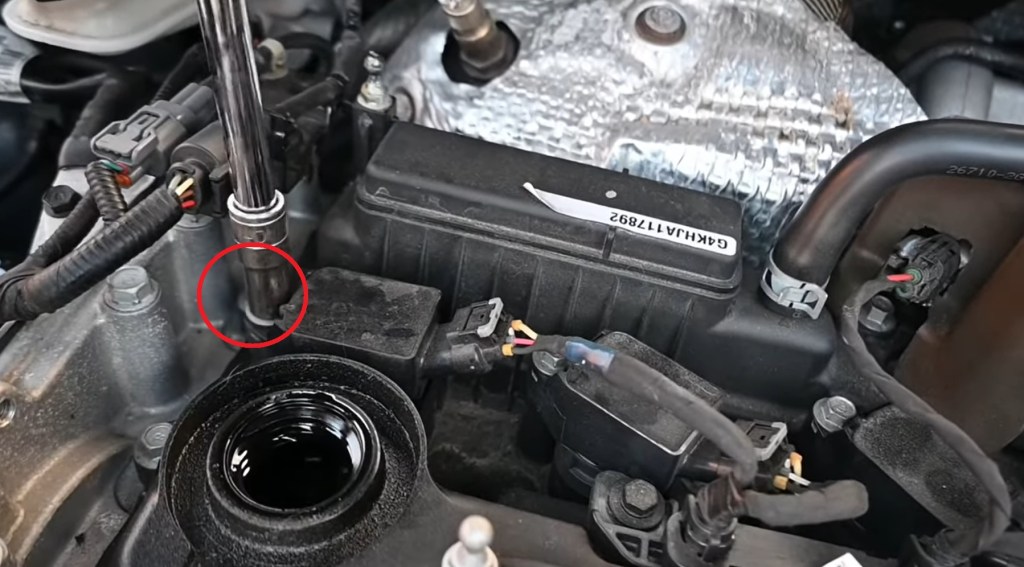

Step 1: Remove the 10mm bolts that are holding down each coil pack.

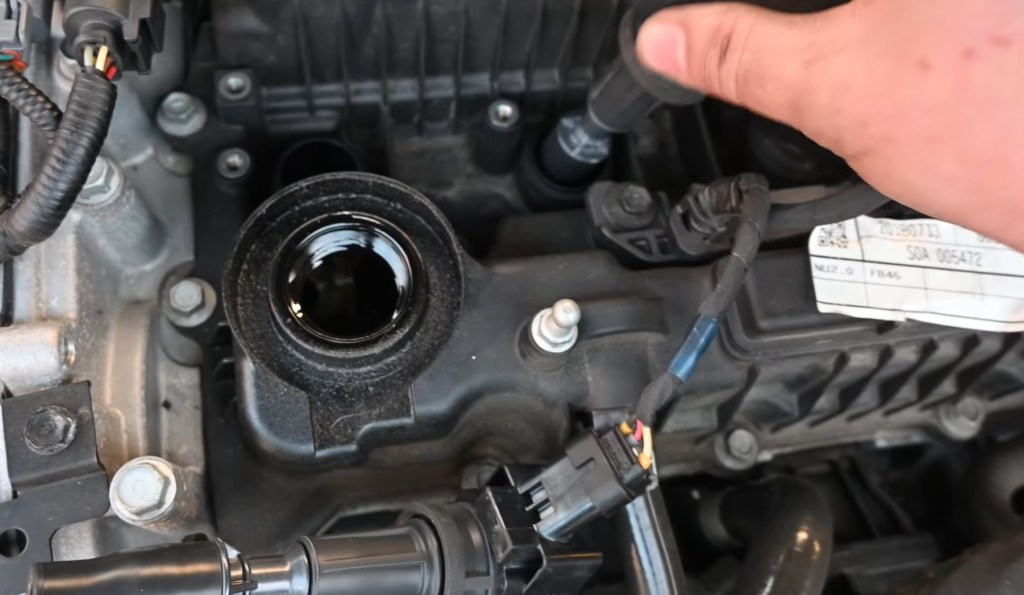

Step 2: Disconnect the switch on each coil and then gently pull out all 4 packs from each channel. Note, if you’re not replacing your coil packs then you can skip disconnecting the switch.

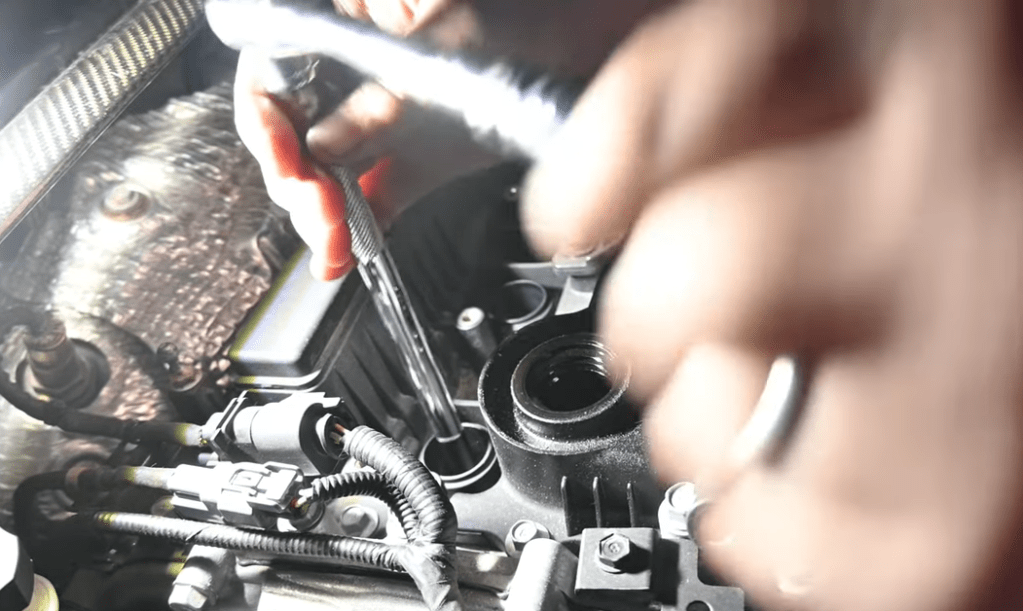

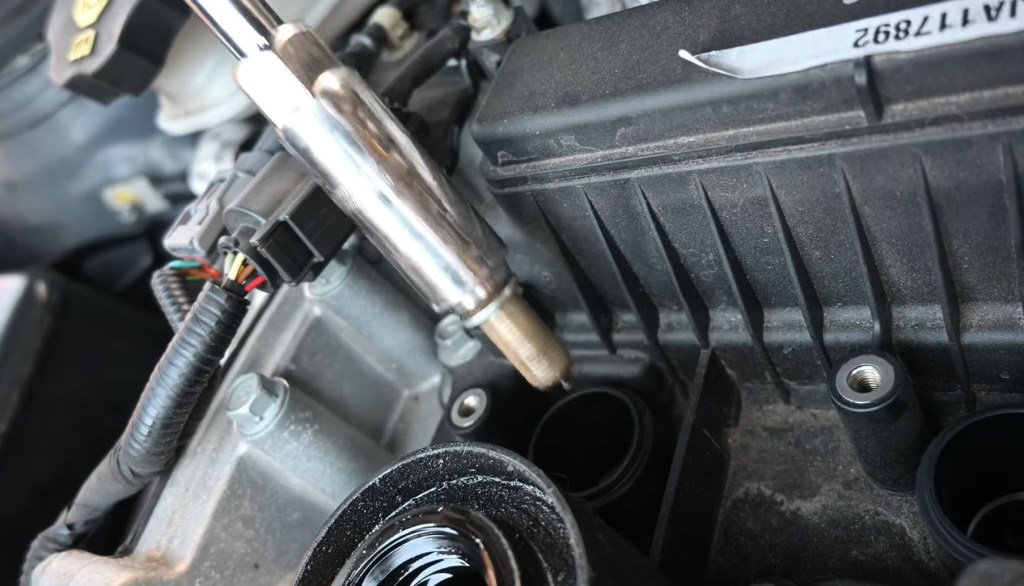

Step 3: Using a 10mm spark plug socket, remove all 4 spark plugs.

Step 4: Put your new spark plug into the socket and gently lower it back into place. Ensure you go in as straight as possible and tighten it by hand first to avoid cross-threading.

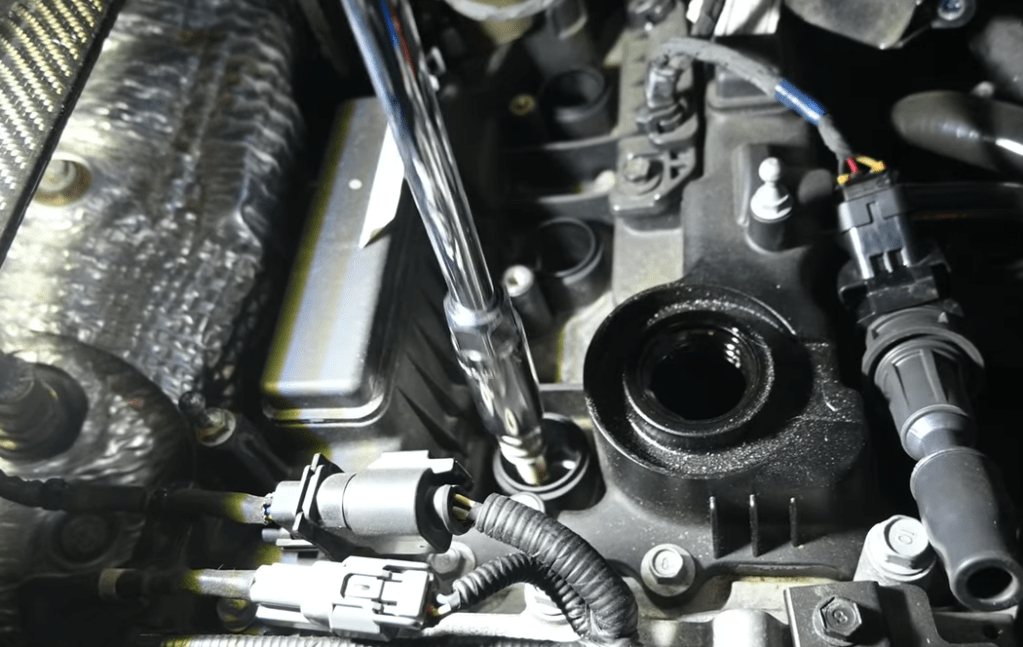

Step 5: Then, snug up your spark plugs with a ratchet and remember not to over tighten them.

Then, install your new coil packs simply install your new parts in reverse order.

Remember: Gently tighten each spark plug in by hand to avoid cross threading. Then once you’re happy, attach your ratchet and give each plug around half-turn to snug them into place.

Full Video Installation

Coil pack and spark plug benefits

Spark Plug Benefits:

Efficient Combustion: Spark plugs play a crucial role in igniting the air-fuel mixture within the combustion chamber of an engine. They produce an electric spark that initiates the combustion process, ensuring efficient and timely combustion.

Improved Fuel Economy: By ensuring proper ignition of the fuel-air mixture, spark plugs contribute to better fuel efficiency. They help optimize the combustion process, allowing the engine to extract more energy from the fuel, resulting in improved mileage.

Enhanced Engine Performance: High-quality spark plugs can improve engine performance by delivering consistent and reliable ignition. They help maintain smooth engine operation, reduce misfires, and provide better throttle response, leading to improved acceleration and overall performance.

Reduced Emissions: Properly functioning spark plugs aid in complete fuel combustion, reducing the emission of harmful gases and pollutants. This contributes to a cleaner and greener environment by minimizing the impact of vehicle emissions.

Coil Pack Benefits:

Efficient Spark Generation: Coil packs are responsible for generating the high-voltage electrical energy required to produce the spark at the spark plugs. They provide a reliable and powerful spark, ensuring optimal ignition and combustion efficiency.

Improved Ignition Performance: Upgrading to a high-performance coil pack can enhance ignition performance. It can deliver a stronger and more consistent spark, promoting better combustion and reducing the occurrence of misfires, especially at high RPMs.

Enhanced Engine Power: A stronger and more efficient spark produced by a high-performance coil pack can result in improved engine power. It enables better combustion of the fuel-air mixture, translating into increased horsepower and torque output.

Durability and Reliability: High-quality coil packs are designed to withstand the demanding conditions of the engine bay, including heat, vibrations, and electrical stress. They offer improved durability and reliability compared to stock coil packs, ensuring consistent ignition performance over time.

It’s worth noting that the specific benefits of spark plugs and coil packs can vary depending on the vehicle, its condition, and any modifications made. It’s recommended to consult the vehicle manufacturer’s guidelines and consider reputable aftermarket options for upgrades or replacements.
